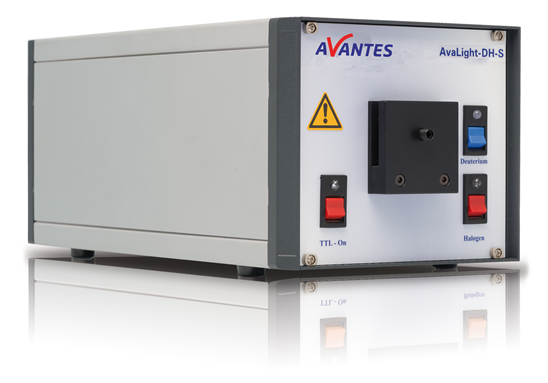

The AvaLight-DH-S is Avantes' most powerful deuterium-halogen source. While it shares the dual deuterium and halogen functionality of the DHc, the DH-S offers 35 times more halogen output and up to 300 times more deuterium power.
It has a prominent 656 nm deuterium peak, which may limit dynamic range (consider the AvaLight-DH-S-BAL for an alternative). The DH-S also includes a focusing lens assembly to maximize the potential and fit of the fiber in question.
The AvaLight-D-S is a deuterium-only light source, making it a great option for measurements in the UV range of 190 to 400 nm. The AvaLight-D-S-DUV version starts even lower at 175 nm for deep-UV experiments. This version also offers two times the intensity at 200 nm.
The output of the AvaLight-DH-S is optimized for fibers or bundles up to 600 micrometers. For larger fibers, the focal point is manually adjustable to ensure optimal light coupling.
Additionally, the AvaLight-D(H)-S includes an integrated TTL shutter and a filter holder that is compatible with filters up to 50 x 50 x 5.0 mm.

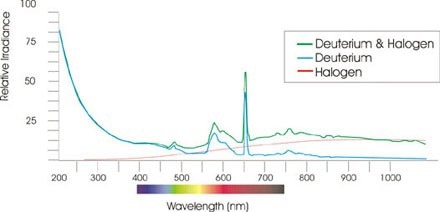

Spectral output AvaLight DH S. Image Credit: Avantes BV
Benefits
- Versatile in the UV/VIS/NIR ranges
- Deep-UV option available
- Combined deuterium and halogen light source
- Powerful
Product Information
Technical Data. Source: Avantes BV
| |
Deuterium (Deep UV)/
Long life |
Deuterium (Standard)/
Long life |
Halogen
Lamp |
| Wavelength range |
175-400 nm |
190-400 nm |
360-2500 nm |
| Warm-up time |
30 min |
30 min |
20 min |
| Lamp power |
78 W / 0.75 A |
78 W / 0.75 A |
5 W / 0.5 A |
| Lamp lifetime |
2000 hrs |
2000 hrs |
1000 hrs |
| Noise (AU) |
2x 10-5 |
2x 10-5 |
10-4 |
| Max. drift |
± 0.5%/hr |
± 0.5%/hr |
±0.1%/hr |
| Color temperature |
|
|
3000 K |
Optical power* in
200 µm fiber |
11 µW |
11 µW |
43 µW |
Optical power* in
600 µm fiber |
72 µW |
72 µW |
239 µW |
Optical power* in
1000 µm fiber |
206 µW |
206 µW |
354 µW |
| Power consumption |
90 Watt (190 Watt for
heating D-Lamp 4-5 sec.) |
90 Watt (190 Watt for
heating D-Lamp 4-5 sec.) |
90 Watt (190 Watt for
heating D-Lamp 4-5 sec.) |
| Power requirements |
100-240 VAC 50/60 Hz |
100-240 VAC 50/60 Hz |
100-240 VAC 50/60 Hz |
| Dimensions, weight |
315 x 165 x 140 mm,
ca. 5 kg |
315 x 165 x 140 mm,
ca. 5 kg |
315 x 165 x 140 mm,
ca. 5 kg |
*Total power for the specified wavelength range. For an overview of separate filters to install in the AvaLight-D-(H)-S, see AvaLight-HAL-S-Mini
Ordering Information. Source: Avantes BV
| |
|
| AvaLight-D-S |
Deuterium light source, 190-400 nm, incl. TTL shutter, -SR fibers needed |
| AvaLight-DH-S |
Deuterium-Halogen light source, 190-2500 nm, incl. TTL shutter, -SR fibers needed |
| AvaLight-D-S-DUV |
Deep UV deuterium light source, 175-400 nm, incl. TTL shutter, -SR fibers needed |
| AvaLight-DH-S-DUV |
Deep UV deuterium-halogen light source, 175-2500 nm, incl. TTL shutter, -SR fibers needed |
| IC-DB26-2 |
Interface cable AvaSpec-USB2 platform to AvaLight-D(H)S |
| AvaLight-D-B |
Replacement deuterium bulb for AvaLight-D/AvaLight DH light source |
| AvaLight-D-B-DUV |
Replacement deep UV deuterium bulb for AvaLight-D/AvaLight-DH light source |
| AvaLight-DH-B |
Replacement halogen bulb for AvaLight-DH light source |
| CUV-DA-DHS |
Direct attach cuvette holder for AvaLight-D(H)S |
