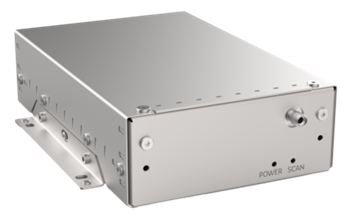

The VARIUS™ OEM spectrometer is the epitome of integration-friendly design, with unparalleled versatility when it comes to embedding into current and new OEM systems. The OEM form of the VARIUS™, with its robust and efficient features, make it suitable for a variety of applications.
Image Credit: Avantes BV

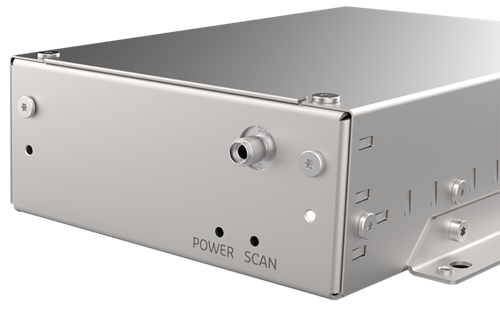

The VARIUS™ spectrometer is available in both regular and industrial (OEM) versions. It has a 2048 or 4096-pixel detector and supports high-speed data transfer via USB3 and Gigabit Ethernet.
Image Credit: Avantes BV

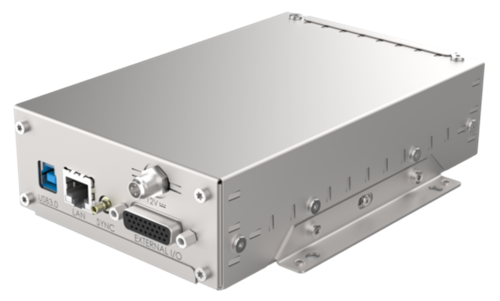

This industrial version is designed to integrate seamlessly with current systems or equipment. It comes in a robust casing that allows for easy integration into production lines, manufacturing processes, medical devices, and other setups.
This type of spectrometer is designed to withstand extreme environments, deliver dependable and precise readings, and allow for seamless data integration with other machinery or control systems.
Its versatility and adaptability make it ideal for a variety of applications, including in-line quality control, process monitoring, and automation.

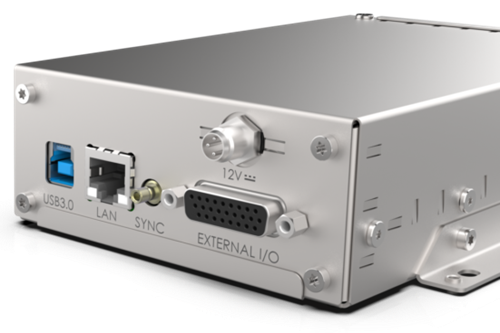

Image Credit: Avantes BV
Patented Technology
The Varius outperforms its predecessors thanks to its patented technology and enhanced optical bench design. The VARIUS™ ensures precision and dependability across several applications. It integrates seamlessly with the AvaSoft software and crosslinks solutions for greater adaptability.
Avantes Varius Spectrometer | When Versatility Meets Precision
Video Credit: Avantes BV
High Reproducibility
Thanks to a well-crafted automated manufacturing process, the VARIUS™-OEM spectrometer can be produced in high volumes with exceptional efficiency, speed, and accuracy.
This automation also ensures reproducibility, making each VARIUS™-OEM spectrometer identical to the next. As a result, Avantes is confident that it can deliver high-quality spectrometers faster than ever before.
Product Compatibility
The VARIUS™-OEM spectrometer is compatible with Avantes light sources, accessories, and AvaSoft software, which means that users can customize setups to match their measurement needs.
Technical Data
Technical Data. Source: Avantes BV
| |
VARIUS-OEM 2K |
VARIUS-OEM 4K |
| Optical Bench |
Symmetrical Czerny-Turner design, 75 mm focal length; VRS bench |
Symmetrical Czerny-Turner design, 75 mm focal length; VRS bench |
| Wavelength range |
190 – 1100 nm |
190 – 1100 nm |
| Stray light |
0.1 – 1% (typical value 300 l/mm, blaze
300 nm < 0.3%) |
0.1 – 1% (typical value 300 l/mm, blaze 300 nm < 0.3%) |
| Detector |
HAM S11639, CMOS linear array, 2048 pixels (14×200 µm) |
HAM S13496, CMOS linear array, 4096 pixels (7×200µm) |
| Signal/Noise |
375:1 |
365:1 |
| Dynamic Range |
4500 |
4500 |
| Dark noise |
15 cnts |
15 cnts |
| AD converter |
16-bit, 6 MHz |
16-bit, 6 MHz |
| Integration time |
9 µs – 30 s |
9 µs – 30 s |
| Interface |
USB3.0 high speed, 5 Gbps, Gigabit Ethernet (1 Gbps) |
USB3.0 high speed, 5 Gbps, Gigabit Ethernet (1 Gbps) |
| Sample speed on-board averaging |
0.38 ms/scan |
0.70 ms/scan |
| Data transfer speed |
0.38 ms/scan (USB3), 1.0 ms (ETH) |
0.70 ms/scan (USB3), 1.31 ms (ETH) |
| Digital I/O |
HD-26 connector, 2 Analog in, 2 Analog out, 13 Digital bidirectional, trigger, sync., strobe, laser |
HD-26 connector, 2 Analog in, 2 Analog out, 13 Digital bidirectional, trigger, sync., strobe, laser |
| Dimensions, weight |
179×110,1×44,8, 799,5 grams |
179×110,1×44,8, 799,5 grams |
| Power supply |
Default USB3 power, 500 mA or 12 VDC, 300 mA |
Default USB3 power, 500 mA or 12 VDC, 300 mA |
| Temperature range |
5 – 55 °C |
5 – 55 °C |
