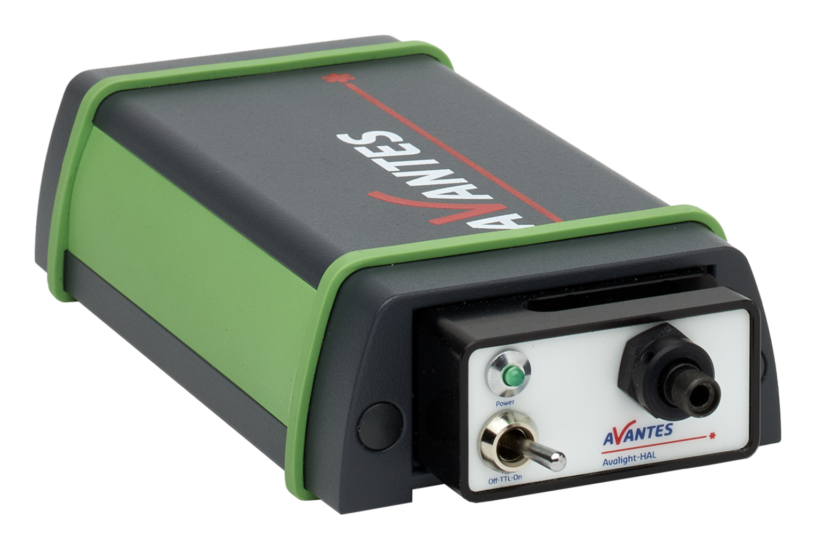

AvaLight-HAL-S-Mini: Compact Halogen Light Source with Versatile Wavelength Precision

The AvaLight-HAL-S-Mini excels in the range of visible light to near-infrared. This compact and stabilized halogen light source features adjustable focusing for the fiber connection, optimizing output power at your chosen wavelength. Additionally, its versatile design includes an adjustable electrical power output, allowing users to either boost performance or extend bulb life.

The AvaLight-HAL-S-Mini has a front filter slot that accommodates 1″ round or 2″x2″ square filters. This allows users to block specific wavelength ranges or adjust the intensity as needed.

Its adjustable focus ensures that the maximum light output is efficiently transmitted through your optical fiber. Bulb replacement is straightforward and can be completed within minutes.

An optional combined direct-attach cuvette holder and attenuator (model CUV-ATT-DA-HAL) is also available upon request. For attenuation, users can use either the in-line filter holder (FH-INLINE) or the in-line attenuator (ATT-INL).

The optical output can be controlled via a dongle located at the rear or directly from the spectrometer. At the lowest setting, the light bulb achieves a color temperature of 2647K, providing an extended lifespan. In the standard or medium setting, the color temperature shifts to 2759K, offering about 30% more power and a bulb lifetime of 2000 hours. The high-power setting further increases the color temperature to 2879K, delivering roughly 70% more power compared to the long-life setting, albeit with a reduced bulb lifespan.

The AvaLight-HAL-S-Mini is equipped with an internal TTL shutter, which can be controlled through the AvaSpec spectrometer. This functionality enables the use of the automatic dark save feature in the AvaSoft spectroscopy software.

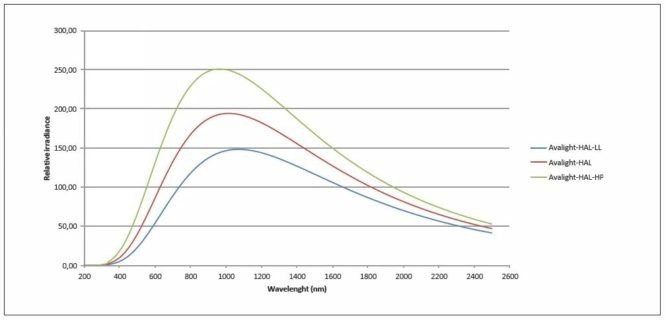

Spectral output of AvaLight-HAL-S-Mini.

Spectral output of AvaLight-HAL-S-Mini. Image Credit: Avantes BV

Benefits

  • Compact and stable halogen light source
  • Internal TTL shutter
  • Long-life and high-power settings to meet individual requirements
  • A variety of accessories are offered for a full setup

Product Information

Technical Data. Source: Avantes BV

  AvaLight-HAL-S-Mini (standard) AvaLight-HAL-S-Mini (long life) AvaLight-HAL-S-Mini (high power)
Wavelength range 360-2500 nm 360-2500 nm 360-2500 nm
Stability < 0.1%/°C < 0.1%/°C < 0.1%/°C
Drift < 0.1%/hour < 0.1%/hour < 0.1%/hour
Time to stabilize < 20 min < 20 min < 20 min
Output to bulb 12.0 VDC/0.87 A 10.8 VDC/0.8 A 13.5 VDC/0.93 A
Bulb life 2000 h 7081 h 440 h
Optical power* 200 µm fiber 0.59 mWatt 0.35 mWatt 0.77 mWatt
Optical power* 600 µm fiber 4.53 mWatt 3.53 mWatt 5.97 mWatt
Optical power* 1000 µm fiber 12.1 mWatt 9.5 mWatt 15.9 mWatt
Bulb color temperature 2,759 K 2,647 K 2,879 K
Power requirement 12 VDC/2.08 A 12 VDC/2.08 A 12 VDC/2.08 A
Temperature range 0-55 °C 0-55 °C 0-55 °C
Dimensions, weight 150 x 78 x 37 mm, 510 g 150 x 78 x 37 mm, 510 g 150 x 78 x 37 mm, 510 g
Lifetime shutter 1,000,000 cycles (typical) 1,000,000 cycles (typical) 1,000,000 cycles (typical)

*Optical power measured from 350-1100 nm

Ordering Information. Source: Avantes BV


AvaLight-HAL-S-Mini2 10 W Tungsten Halogen light source, fan cooled, incl. TTL shutter, needs extra PS-12 V/2.08 A power supply
AvaLight-HAL-S-Mini2-RM Rack-mounted version of AvaLight-HAL-S-Mini2
IC-DB26-2 Interface cable AvaSpec-USB2/EVO platform to AvaLight-HAL-S-Mini2 for shutter and power setting
AvaLight-HAL-B-Mini2 10 W Tungsten Halogen Replacement bulb for AvaLight-HAL, AvaLight-HAL-S-Mini(2)
PS-12V/2.08A Power supply 100-240 VAC/12 VDC, 2.08 A, necessary for AvaLight-HAL-Mini2
DONGLE-H Dongle for high power setting
DONGLE-L Dongle for long life setting



Options. Source: Avantes BV


GL-WG305-3 Separate 50 x 50 x 3 mm long-pass filter > 305 nm
GL-KG3-3 Separate 50 x 50 x 3 mm bandpass filter, transparent > 325 nm and < 700 nm
GL-BG28-3 Separate 50 x 50 x 3 mm bandpass filter, transparent > 360 nm and < 500 nm
GL-GG395-3 Separate 50 x 50 x 3 mm long-pass filter > 395 nm
GL-GG475-3 Separate 50 x 50 x 3 mm long-pass filter > 475 nm
GL-OG515-3 Separate 50 x 50 x 3 mm long-pass filter > 515 nm
GL-OG550-3 Separate 50 x 50 x 3 mm long-pass filter > 550 nm
GL-NG9-1 Separate 50 x 50 x 1 mm Neutral Density filter (transmission ca. 10% 400-1100 nm)
GL-NG9-2 Separate 50 x 50 x 2 mm Neutral Density filter (transmission ca. 1% 400-1100 nm)
GL-NG9-3 Separate 50 x 50 x 3 mm Neutral Density filter (transmission ca. 0.1% 400-1100 nm)
