Overview
Ginolis LF INFINITY D is a lateral flow nitrocellulose membrane dispensing solution on a reel-to-reel basis. This tiny device is perfect for both manufacturing and product development due to its advanced quality control, intuitive user interface, and incredibly high production performance.

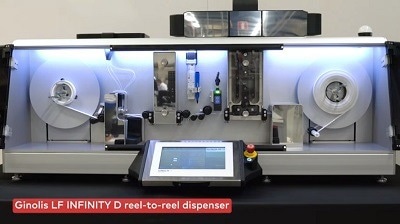

Ginolis LF INFINITY D
Video Credit: Ginolis Ltd
Features

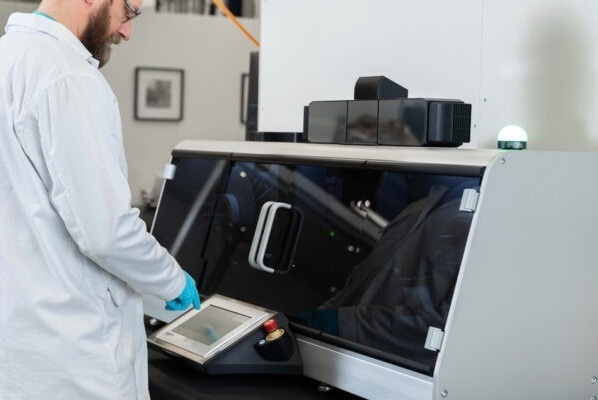

Intuitive user interface
Ginolis LF INFINITY D includes a touchscreen user interface and a wizard that walks users through the process of setting up the system and terminating the run, making the machine simple to use. The software features user management, production recipe management, and live QC broadcasting in various languages.
Image Credit: Ginolis Ltd

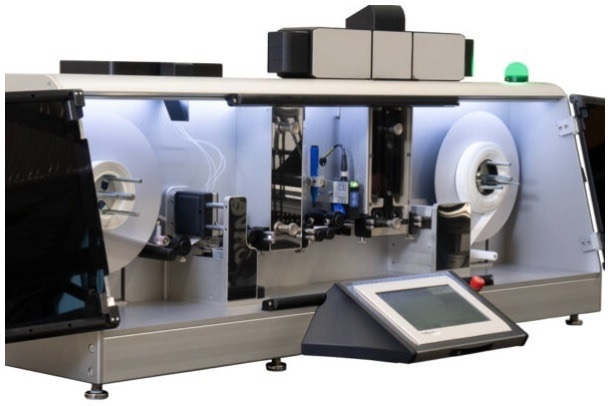

High production performance
Because LF INFINITY D has an integrated dryer, no additional drying facility is required. As a result, the reel is readily available for use, resulting in a very fast total performance of the operation.
Image Credit: Ginolis Ltd

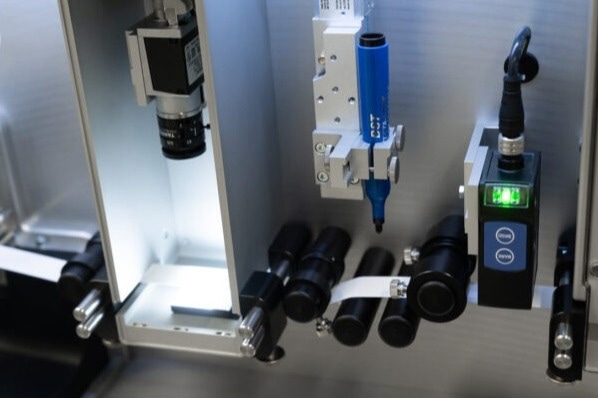

Advanced quality control
Ginolis LF INFINITY D includes a real-time machine vision system for quality control; a black line shows badly dispensed areas. The black line has its own QC. The live stream of the user interface can be used to monitor quality control.
Image Credit: Ginolis Ltd

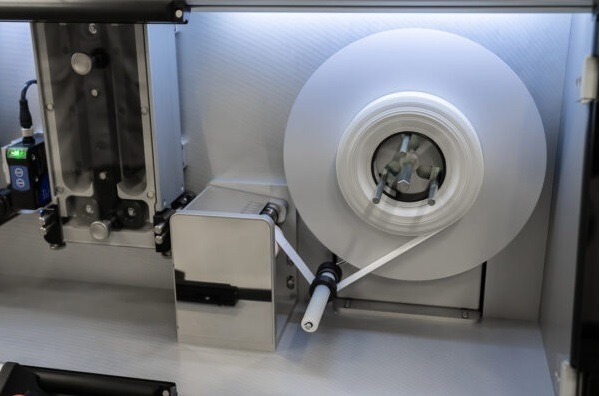

Versatile features
This user-friendly equipment includes a linear membrane speed, dispensing volumes, drying efficiency, and quality control settings that are all customizable. Furthermore, the quick reel change and compact and clean design make using Ginolis LF INFINITY D even more convenient.
Image Credit: Ginolis Ltd
Technical specifications
Table 1. Source: Ginolis Ltd
| . |
. |
| Visuals |
Real-time machine vision for quality control with parameter adjustment |
| Drying |
Integrated dryer with adjustable drying temperature and fan speed |
| Striping |
Continuous membrane striping |
| Controls |
Adjustable precision flow control and membrane speed |
| Reel width |
25 mm and 35 mm nitrocellulose membrane reel widths |
| Dimensions (mm) |
1570x705x615 (WxHxD) |
Production performance
Table 2. Source: Ginolis Ltd
| . |
. |
| Dispensing and drying capability |
> 0,6 µL/cm, 150-meter nitrocellulose membrane dispensing and drying in less than 3,5 hours |
| Maximum membrane speed |
50 mm/sec, typically 20 mm/sec |
| Maximum flow rate/channel |
1100 µL/min |
