Adapter

Need more information?

Let us help you with your inquiries, brochures and pricing requirements

Request A Quote
Download PDF Copy

Overview

QInstruments provides high-precision adapter plates for all BioShake units to enable a perfect fit for all types of standard tubes, vials, microplates, and other various disposables. The adapter plates are designed to maximize uniformity across all wells, excellent heat transfer to the disposables, and heat-up or cool-down times.

Within a minute, the adapter plate exchange can be done very quickly. While mounting the instrument, all adapters will be automatically detected. The properties of an adapter are determined by its placement in a specific category. The display includes a list of all pending data and indicators.

Applications

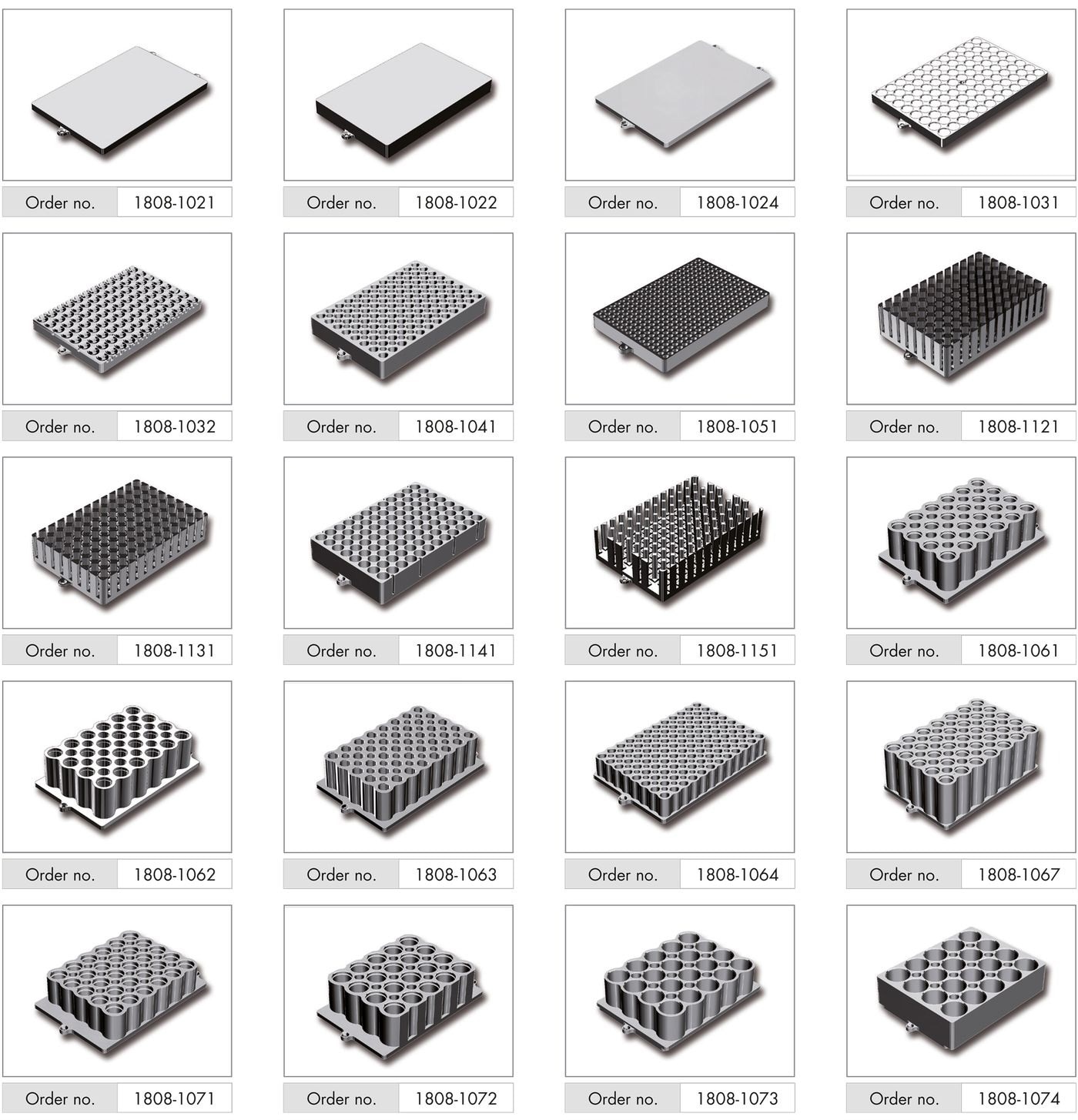

The following standard adapters are available and work with all BioShake lab bench units:

BioShake iQ
BioShake XP

Microplates

Table 1. Source: QINSTRUMENTS GmbH

.	.
Standard	1808-1021 \| Microplate . Flat bottom standard 1808-1022 \| Microplate . Flat bottom High Base 1808-1032 \| Microplate . 96 well round bottom
PCR microplates	1808-1041 \| PCR plate . Eppendorf^{^®} 96/150 µl 1808-1051 \| PCR plate . Eppendorf^® 384/40 µl
Deep well & storage plates	1808-1121 \| Deep well . Eppendorf^® 96/1.0 ml 1808-1131 \| Deep well . Eppendorf^® 96/0.5 ml 1808-1141 \| Deep well . BRAND^® 96/1.1 ml 1808-1151 \| Deep well . NUNC^®/Axygen^® 96/2.0 ml 1808-1161 \| Deep Well . Axygen^® 96/0.6 ml 1808-1171 \| Deep Well . Abgene^® 96/2.2 ml 1808-1172 \| Deep Well . Abgene^®/HJ-Bio^®/Greiner^® 96/0.8-1.2 ml 1808-1181 \| Deep Well . Sarstedt^® 96/2.2 ml Megablock 1808-1201 \| Deep well . Corning^® 96/320 µl

Tubes and striped and vials

Table 2. Source: QINSTRUMENTS GmbH

.	.
Conical shape	1808-1060 \| Tubes . 15x 5.0 ml 1808-1061 \| Tubes . 24x 2.0 ml . 15x 0.5 ml 1808-1062 \| Tubes . 24x 1.5 ml . 15x 0.5 ml 1808-1063 \| Tubes . 40x 0.5 ml . 28x 0.2 ml 1808-1064 \| PCR Tubes/Stripes/Plates . 96x 0.2 ml 1808-1093 \| FALCON^® tubes . 4x 50 ml 1808-1094 \| FALCON^® Tubes . 12x 15 ml
Cylindrical shape	1808-1069 \| Vials . 35x 2.0 ml Ø 10.8 mm 1808-1071 \| Vials . 30x 2.0 ml Ø 12 mm 1808-1072 \| Vials . 20x 4.0 ml Ø 15 mm 1808-1073 \| Vials . 20x 4.0 ml Ø 17 mm 1808-1074 \| Vials . 20x 6.0 ml Ø 19 mm
