Overview

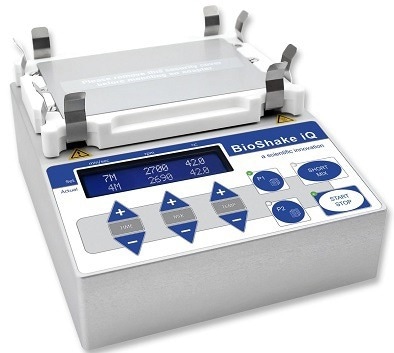

The BioShake iQ high-end thermoshaker’s compact and fashionable design enables users to complete all of their routine mixings runs with the fewest possible adjustments.
A wide range of applications in biotechnology, pharmaceuticals, and scholarly research can be handled with the BioShake iQ’s exceptional performance.
Benefits
- For microplates, tubes, and glass vials
- Fast and high-precision heating
- Temperature range: ambient to 99 °C
- Precise mixing from 200–3,000 rpm
- Wide range of thermo adapters
- Stylish aluminum housing
Advanced technology
Save time
Image Credit: QINSTRUMENTS GmbH
- Higher throughput is achieved by combining the mixing operation with the incubation phase, which decreases reaction process times and operator workload while increasing the efficiency of many procedures
- The BioShake iQ’s primary functionality is provided by the exquisitely finished aluminum housing. It guarantees a long service life, high levels of security, and device stability
Gentle mixing of samples
By planar orbital motion
Image Credit: QINSTRUMENTS GmbH
- The BioShake iQ thermoshaker, which was developed and produced in Germany, has a 2-dimensional shaking axis that is extremely effective and speeds up sample mixing compared to other systems.
- The mixing orbit of 2.0 mm remains constant at all times. Since the orbital shaking is so carefully managed, users never had to spin down the plates after mixing
- These precise tools can work with anything, including tubes, vials, high-density plates, and small sample volumes
- Fully adjustable between 200 and 3,000 revolutions per minute (rpm), which is much faster than the speeds of the majority of other brands, ensures quick, splatter-free mixing for tubes, glass vials, or across an entire 384-well microplate

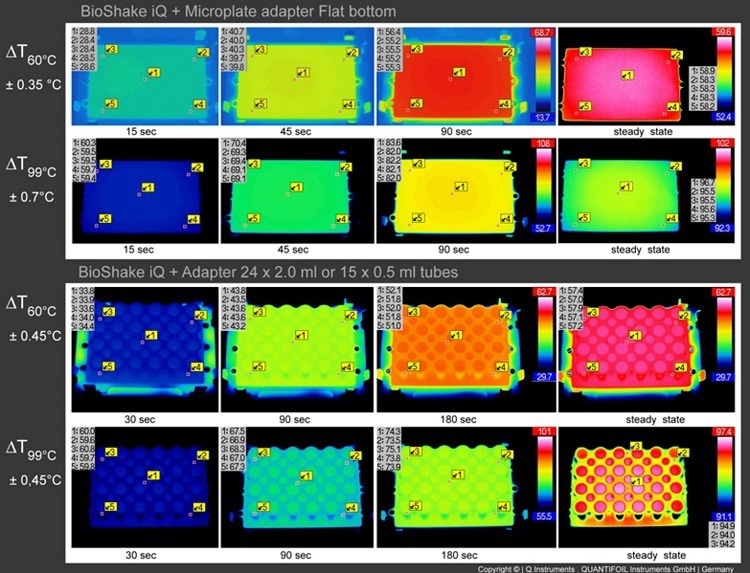

Homogeneous heating
Using large-area heating source in combination with digital sensor electronic
Image Credit: QINSTRUMENTS GmbH
- The BioShake iQ quickly heats from room temperature to 99 °C while offering features that make it simple to use, incredibly comfortable, and with maximum safety
- The BioShake iQ integrates the thinnest large-area heating elements and sensors. The unique electronic control system ensures that all vessels are heated to the same temperature during the heat-up period with little variation
- The temperature ranges from room temperature to 99 °C in steps of 1.0 °C. The temperature distribution uniformity across the heating surface is better than ±0.5 °C at 45 °C, and the nominal regulation accuracy is better than ±0.1 °C
- To perfectly adapt to microplates, tubes, or glass vials, exchangeable thermo adapter plates and thermal blocks are available

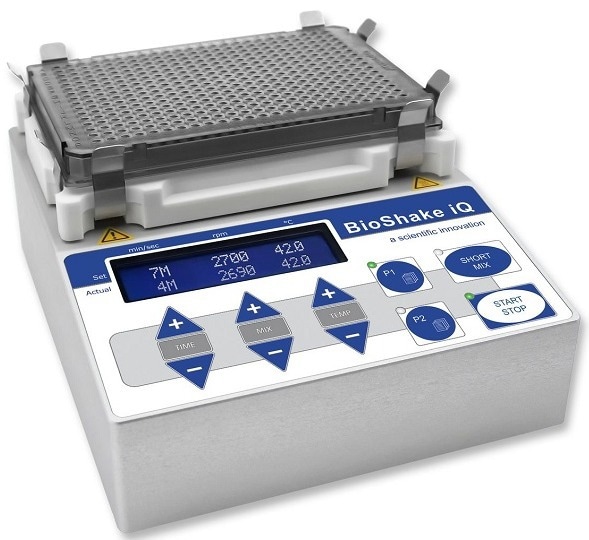

Universal spring clamps
Suitable for all microplates
Image Credit: QINSTRUMENTS GmbH
- Eight spring clamps are inserted in the corners to make it simple to fix skirted microplates and deep well plates in the SBS format, which is 127.7 × 85.5 mm, without an attached adapter. Even at the highest mixing frequencies, these spring clamps lock the microplate quickly and securely
- Utilizing the appropriate PCR adapter is advised for flexible and deformable PCR plates
- It is simple and safe to perform frequent plate changes and quick mixing procedures routinely

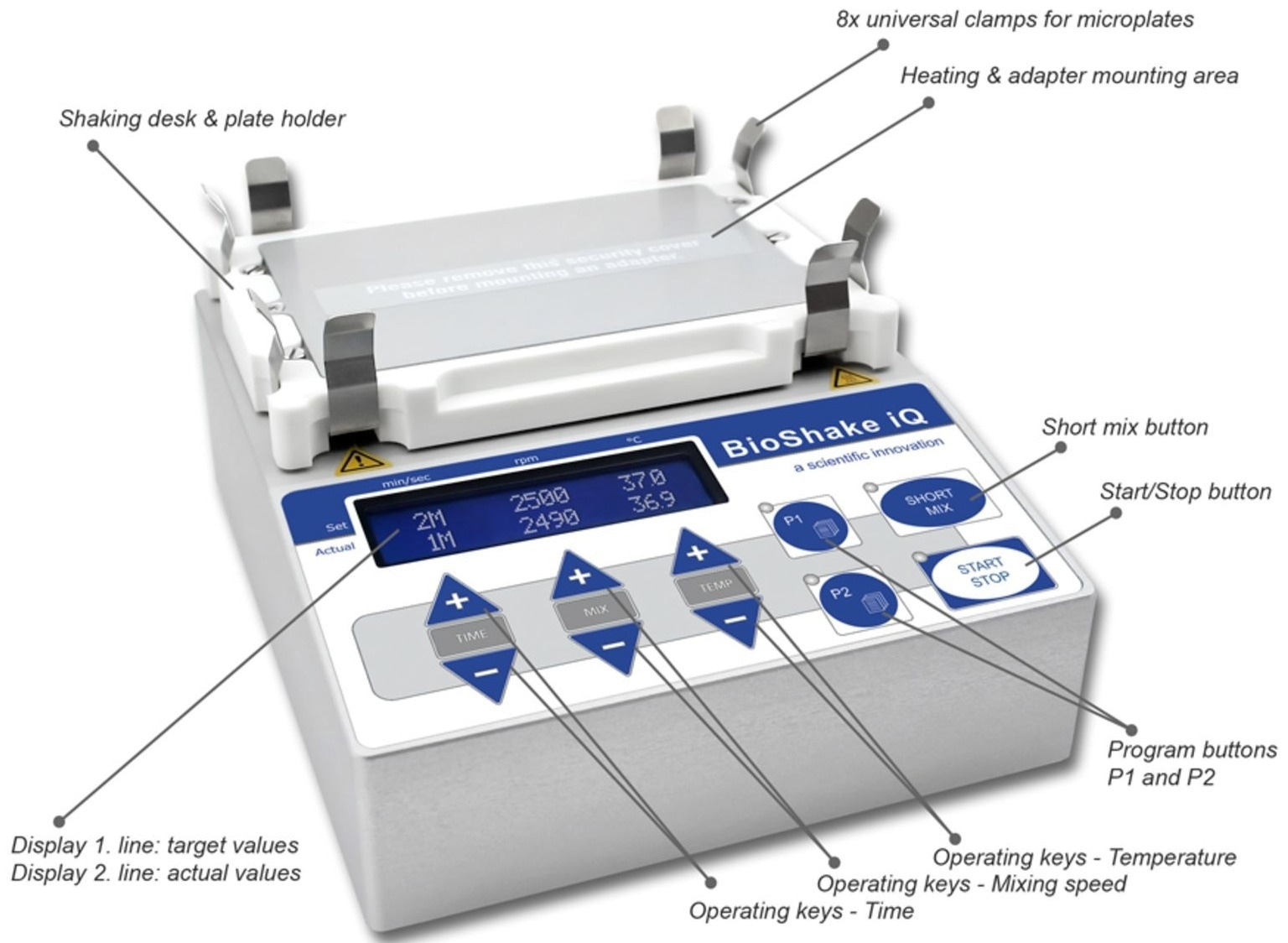

Comfort
Simple intuitive operation and programming
Image Credit: QINSTRUMENTS GmbH
- The front face of the enclosure, which has touch buttons and a display, is used to control the BioShake iQ
- The instrument can run sophisticated applications because it has special buttons for starting, stopping, and storing time and mixing modes. This greatly improves routine application and offers fresh perspectives on daily laboratory work
- The short mix button enables in-between short and quick mixing
- The two-line LCD display ensures that all programmed and measured parameters, such as time, mixing frequency, and temperature, can be read simultaneously and safely

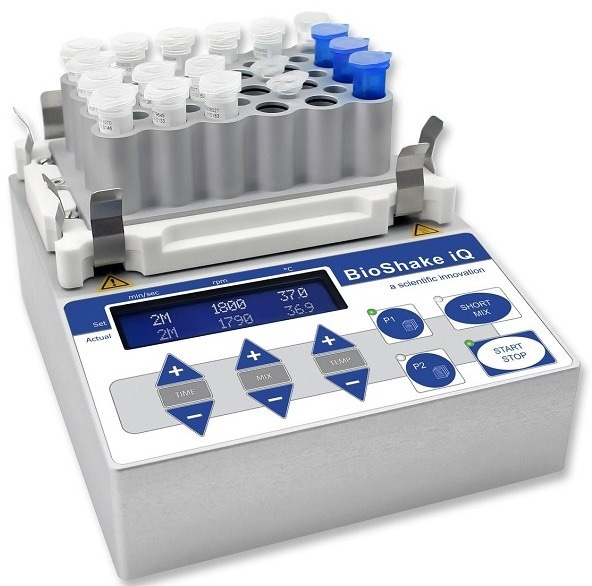

Exchangeable thermos adapters
For a wide range of applications
Image Credit: QINSTRUMENTS GmbH
- There are numerous standardized and targeted adapter plates included with the BioShake iQ. The adapters can be changed very easily
- Standard tubes, lysis tubes, microplates, glass vials, and other sample vessels can all be fitted perfectly with the help of perfectly shaped adapters. All samples will have superb temperature uniformity
- They have also consistently used innovative thinking and future-focused research in their work
Unique design meets high-end technology
First-class finished aluminum housing
Image Credit: QINSTRUMENTS GmbH
- Laboratory equipment that is beautiful and clearly defined is created by combining an original and efficient design with the smallest housing possible
- BioShake iQ’s primary functionality is provided by the premium-finished aluminum housing.
- It offers a high level of security, ensures device stability, and prolongs device life
- It is obvious that user safety and usability are a priority
Made in Germany
High-end instruments for daily routine
- High-tech and handmade elements are combined in perfect harmony. A recipe for success for QInstruments has always been “Made in Germany”
- Germany serves as the sole manufacturing location for QInstruments
- Human diligence and environmental friendliness are prioritized. The business consistently practices quality management to uphold its quality guarantee
- These Jena lab automation specialists have been using only premium materials for more than 15 years to ensure sustainable production
- They also regularly apply innovative thinking and conduct research that is focused on the future
