Overview

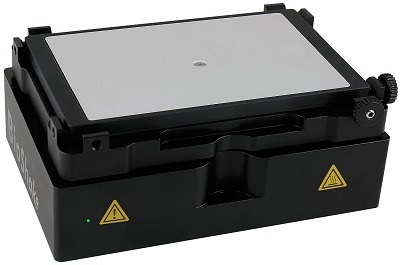

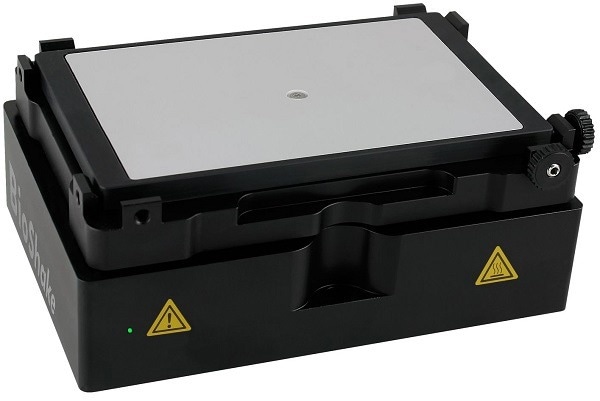

The BioShake 3000-T from QInstruments is an optimized heater shaker for tubes and vials.
Key benefits
The BioShake 3000-T has been specifically developed for the trustworthy mixing of vials and tubes. The BioShake 3000-T heats from ambient up to ranging 99 °C in a brief time and offers user-friendly features, amazing comfort, and utmost safety.
Image Credit: QINSTRUMENTS GmbH
The exchangeable adapter plates and thermal blocks allow an ideal adaptation to tubes or glass vials.
Features
BioShake 3000-T provides excellent thermal heating performance.
- Perfect for vials and tubes
- High-accuracy heating from ambient to 99 °C
- Ranges from 2.0 mm mixing orbit
- Sensored zero-position provided
- All parts inside
- Perfected thermo adapters available
- Quick mixing from 200 up to 3,000 rpm
- Simple installation and easy start-up are offered
- Stylish aluminum housing could be performed
Image Credit: QINSTRUMENTS GmbH
Advanced technology

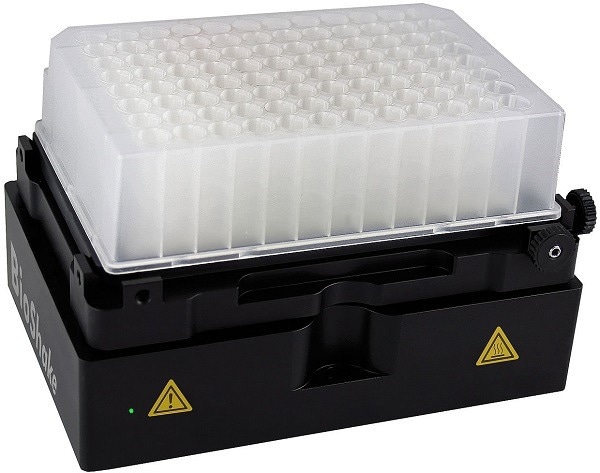

Save time
By integrating the mixing operation with the help of the incubation phase, reaction process times and operator workload are decreased and the efficiency of several procedures is increased, leading to a higher throughput.
The first-class finished aluminum housing provides the BioShake 3000-T with its necessary functionality. It offers a high amount of safety, and device stability, and guarantees a long service life.
Image Credit: QINSTRUMENTS GmbH

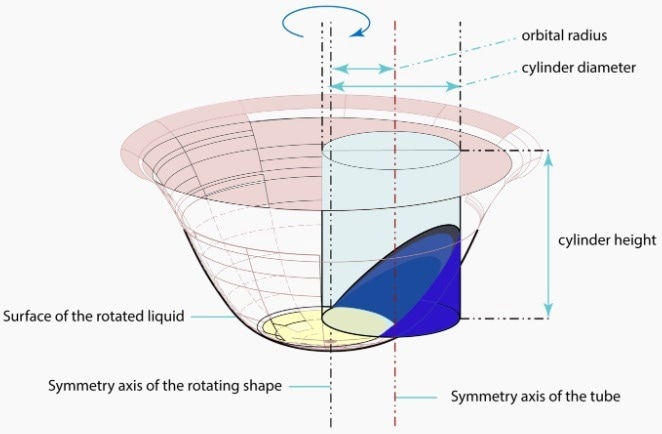

Gentle mixing of samples
By planar orbital motion
Being German-designed and manufactured, BioShake 3000-T thermoshaker provides an ultra-efficient, 2-dimensional shaking axis so that samples tend to get mixed entirely in a fraction of the time of competing systems.
On a frequent basis, the mixing orbit of 2.0 mm seems to be constant. The orbital shaking has been regulated precisely, indeed, that users do not have to spin down their plates following mixing.
Completely adjustable between 200 and 3,000 rpm, far beyond the speeds of most other brands, ensures quick, splatter-free, mixing for tubes, glass vials, or through a full 384-well microplate.
Image Credit: QINSTRUMENTS GmbH

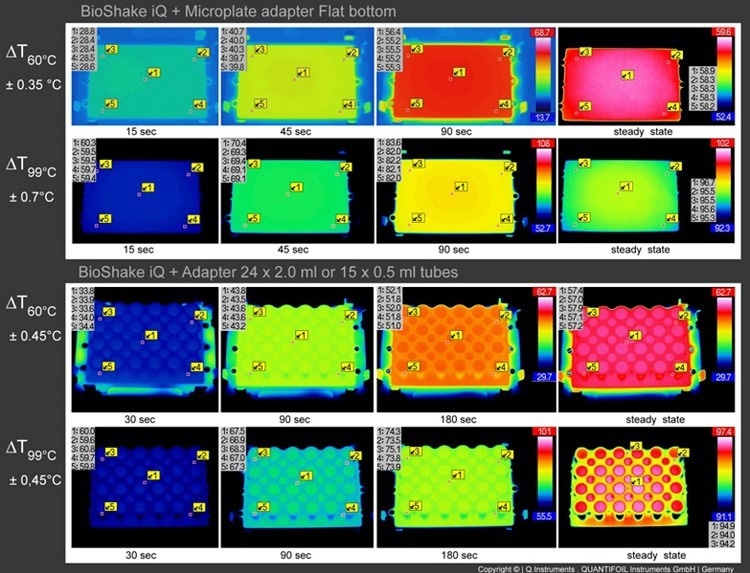

Homogeneous heating
Using large-area heating source in combination with digital sensor electronic
The BioShake 3000-T heats range from ambient to 99 °C in a brief time, offers user-friendly features, utmost safety, and amazing comfort.
Inside the BioShake D30-T elm thinnest large-area heating elements and sensors are combined. At the heat-up time, the unique electronic control system ensures the same temperature for all vessels with the least deviations.
Temperatures are chosen from ambient temperature to 99 °C in steps of 1.0 °C. The nominal regulation precision is better than ±0.1°C with evenness of temperature distribution better than ±0.5 °C at 45 °C throughout the heating surface.
Exchangeable thermo adapter plates and thermal blocks allow an ideal adaptation to microplates, glass, or tubes vials.
Image Credit: QINSTRUMENTS GmbH

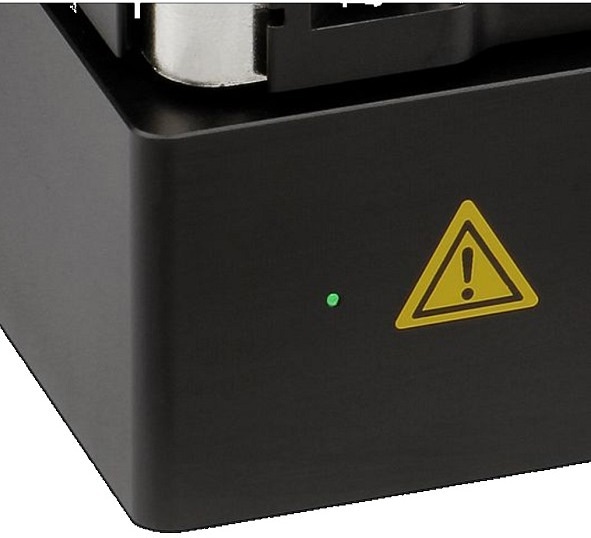

LED indication light
Simple status monitoring
All BioShake devices consist of sophisticated internal algorithms and sensors for tracking error detection and operating parameters. Any errors are sent out through RS232 communication interface. Those are simpler to detect and localize.
To enhance the functional testing at the time of installation and envision the functioning status all BioShake automation devices are fitted with one combined LED indication light in front.
The indication light enables a rapid error control and function test. This consists of a green and red status that light up either, or is even disabled. In event of failure, the error list should be read out through RS232 command, to aid in the detection of the error more accurate manner.
Image Credit: QINSTRUMENTS GmbH

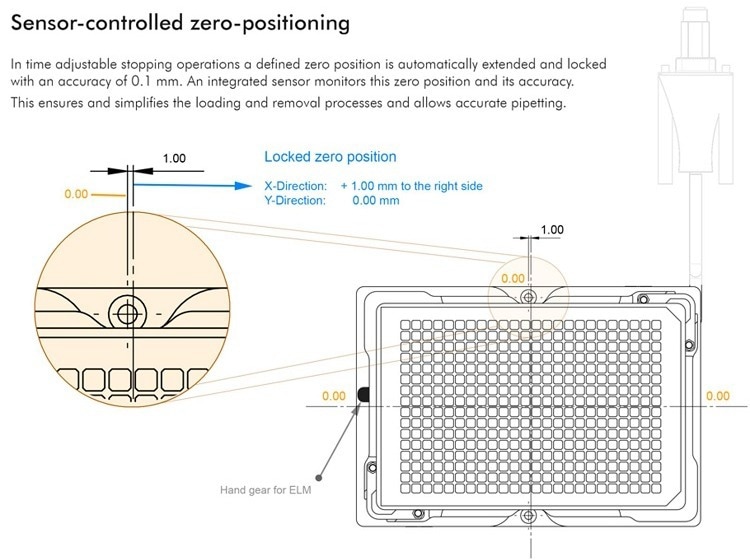

Zero position
Locked and sensor-controlled zero-positioning
In time-adjustable stopping operations, a specified zero position has been automatically extended and locked with a precision of 0.1 mm.
A combined sensor tracks these zero positions and their precision. This guarantees and streamlines the loading and elimination processes and enables precise pipetting.
Image Credit: QINSTRUMENTS GmbH

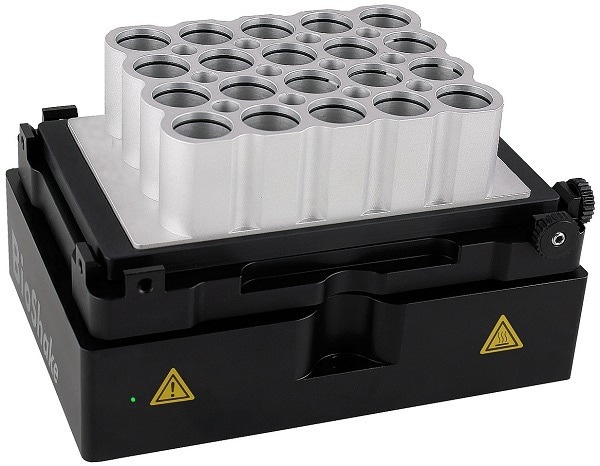

Exchangable thermo adapters
For a wide range of applications
The BioShake 3000-T is available with a range of standardized and particular thermo adapter plates. The substitution of the adapters is very easy.
Perfect-shaped adapters enable an improved fit for lysis tubes, standard tubes, microplates, glass vials, and other sample vessels. Outstanding temperature uniformity and homogeneity is ensured for all samples.
Image Credit: QINSTRUMENTS GmbH
Comfort
Simple intuitive integration in robots and programming
The BioShake could function through RS232 or USB user interface. An automatic initialization will begin after turn on.
A simple command set enables users to easily regulate hardware and sensors. The process parameters are continuously regulated and read out. A self-setting zero position of the shaker plate following turning off makes the laborious electrical tracking unessential. This guarantees the utmost operating security also in the untracked continuous operation.
QInstruments offers approved SILA® drivers for all BioShake units.

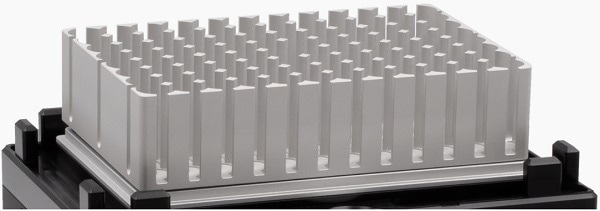

Unique design meets high-end technology
First-class finished aluminium housing
Special and effective design integrated with the majority of the compact housing led to beautiful and well-defined laboratory equipment. Thus, the first-class finished aluminum housing provides the BioShake 3000-T with its necessary functionality. It offers a high amount of security, and device stability and guarantees a long service life.
Image Credit: QINSTRUMENTS GmbH
Made in Germany
High-end instruments for daily routine
An ideally harmonious blend of high-tech and handmade. “Made in Germany” has frequently been a recipe for success for QInstruments. 100% of QInstruments production occurs in Germany.
The focus is on human diligence and on being eco-friendly. The company supports its quality guarantee through consistent quality management. For over 15 years, lab automation professionals from Jena have utilized high-quality materials to guarantee tenable production, applied ground-breaking thinking, and undertaken research in a future-oriented way—all as a logical outcome.
